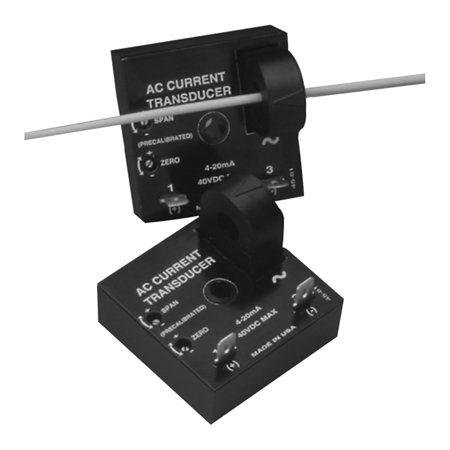

Its input, output, power supply are in 1.5kv. 0 - 50A in 4 ranges using LCSC10T12 sensorĭownload the The SSAC Product Line catalog in *.pdf formatĭownload the The DCSA Series Datasheet datasheet in *. HIC AAC-4-20MA DIN Rail ac current to 4-20ma transducer input range is 0-5AAC, output 4-20mA, 0-5V, 0-10V, etc.Connect the power supply to terminals C & B to get 2 to 10VDC at terminal D. Connect the power supply to terminals C & A to get 1 to 5VDC at terminal D. Connecting the power supply to terminals C & D provides a 4 to 20mA DC current. The DCSA varies the effective resistance of its output in direct proportion to the current flowing in the conductor monitored by the LCSC10T12. Each unit is factory calibrated for monitoring (with the LCSC10T12. The DCSA mounts on both DIN 1 and DIN 3 rails. The DCSA provides either an analog current or voltage: 4 - 20 mA, 1 to 5VDC, or 2 to 10VDC. Zero and span adjustments allow field calibration if needed. Each unit is factory calibrated for monitoring (with the LCSC10T12 connected) in one of four ranges 0 - 5, 0 - 10, 0 - 20, or 0 - 50A. The DCSA provides either an analog current or voltage: 4 - 20 mA, 1 to 5VDC, or 2 to 10VDC. The DCSA Series is a loop-powered, linear output current transducer that provides an output that is directly proportional to the RMS AC current passing through the LCSC10T12 sensor. A typical current output is 4 to 20 mA in a 2 wire configuration, but there are 3 wire configurations which can provide 0 to 20mA or 4 to 20mA current loop output signal with a separate positive supply and output connection. Current Transducer 4 To 20ma Output Manufacturers, Factory, Suppliers From China, If you are interested in any of our products and services, please dont. We offer a comprehensive portfolio of Industrial LoRaWAN IOT sensors.DCSA50 - SSAC Current Transducer 0 50A 4 20mA use LCSC10T12 Programmable measurement & transmission frequency.Connect any sensor or actuator to 4.20 mA standardĤ.20mA to LoRaWAN Converter Technical specifications.Any industrial interface compatible with the 4.20 mA (2-wire) industrial standard Current measuring transducer for 1 A and 5 A AC, the output signal 0.20 mA or 4.20 mA, can be configured using a DIP switch with an operating mode.Use Cases of the 4.20mA to LoRaWAN Converter Like all our LoRa sensors, the 4.20 mA industrial converter has an internal temperature sensor.
It is also equipped with 2 Open-Drain outputs, for example to control the starting or stopping of a machine through an actuator function. In addition, this converter has 2 digital inputs, also called safety inputs, to measure events on the plant / machine equipped.
This measurement is performed at a programmable frequency (eg every hour) and transmitted through a public or private LoRaWAN network. The 4.20mA to LORA converter therefore allows measurement of the intensity of the electric current of any sensor supporting this industry standard. It is therefore possible to detect a break line or signal, because in this case, the intensity is zero. The loop devices provide feedback to the world, whether it is an indicator displaying the measured quantity from the transmitter, or some type of relay output. On the other hand, the intensity in the loop is never zero, even if the signal to be transmitted corresponds to the minimum of the scale. On the one hand, the current loop has the advantage, compared to the voltage loop, of not being affected by line losses. The intensity of the current is directly proportional to the intensity of the signal to be transmitted. The 4-20 mA current loop is the most widely used principle in the industry because it allows linear representation of the signal to be measured. This converter makes it possible to connect any sensor or actuator, through a pair of electrical conductors in which circulates a current whose intensity is proportional to the signal to be transmitted. Current Output Type 4-20mA Accuracy 10 Power Consumption Less than or equal to 1W Maximum Leakage Current Less than or equal to 1mA Response Time Less. The 4.20mA to LORA converter allows the transmission of any analog signal respecting the 4.20 mA current loop standard. Contact factory for loop resistance above 250 Select 24V Power supply for output of 420mA Id Part Number Example: CE.
